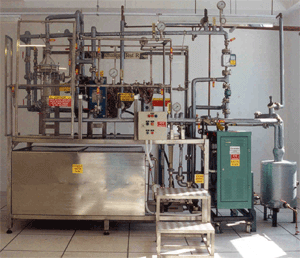

Heat Exchanger Test Rig

Brief Description


A heat exchanger is the mechanical device used to contact two fluids in a controlled manner. Heat exchangers come in a variety of designs, i.e. coil & shell, plate, shell & tube, etc. The one common characteristic is  the separation of the cold liquid stream from the hot liquid stream by a barrier. These are the three common designs that are used for the teaching purpose.

Training Objectives

To determine the heat transfer relationships of shell & tube, coil & shell and plate heat exchangers by fixing the temperature and flow rate of the hot fluid and regulating the temperature and flow rate of the cold fluid


For more information, please contact us.
